耐磨鋼板主要用于礦業、水泥廠、火電廠、化工、運輸?shù)?，耐磨鋼板在使用過程中耐磨性好，不變形，不破碎，可以提高整體生產力，減少停機時間，其使用壽命是普通鋼板的2-10倍。

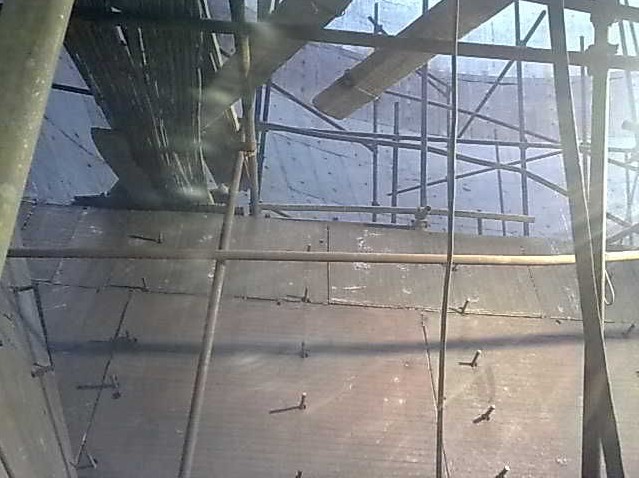

圖（1）為北京耐默公司生產的耐磨復合鋼板在內蒙古某煤倉安裝現場
圖（2）是耐磨復合鋼板在落料斗中使用一年后的表面磨損情
下面介紹一下常用的耐磨鋼板牌號及其合金成分：
| 序號 |
牌號 Designation |
化學成份Chemical Compostion(%) | ||||||||
| C | Si | Mn | Cr | Mo | Ni | Cu/B | S | P | ||
| 1 | NM360 | ≤0.25 | ≤0.70 | ≤1.30 | ≤1.4 | ≤0.50 | ≤1.00 | B≤0.004 | ≤0.010 | ≤0.025 |
| 2 | NM400 | ≤0.25 | ≤0.70 | ≤1.60 | ≤1.4 | ≤0.50 | ≤1.00 | B ≤0.004 | ≤0.010 | ≤0.025 |
| 3 | NM500 | ≤0.38 | ≤0.70 | ≤1.70 | ≤1.20 | ≤1.00 | ≤1.00 | ≤0.010 | ≤0.025 | |
| 4 | 耐磨復合鋼板 | 3.8-5.0 | 0.5-1.5 | 0.5-1.5 | 24-30 | 0.2-1.4 | ＜0.5 | ＜0.5 | ≤0.03 | ≤0.03 |
| 5 | ZGMn13 | 1.1-1.4 | 0.3-1.0 | 11-14 | ≤0.06 | ≤0.09 | ||||
| 6 | ZGMn13Cr2 | 1.1-1.4 | 0.3-1.0 | 11-14 | 1.5-2.5 | 0-0.5 | ≤0.06 | ≤0.08 | ||
| 7 | ZGMn17Cr2 | 1.1-1.4 | 0.3-1.0 | 16-19 | 10-2.0 | Ti0.2-0.4 | ≤0.06 | ≤0.08 | ||
| 8 | ZG20Cr26Ni5 | ≤0.20 | ≤2.0 | ≤2.0 | 22-26 | ≤0.50 | 4-6 | ≤0.04 | ≤0.04 | |
| 9 | ZG35Cr26Ni12 | 0.2-0.5 | ≤2.0 | ≤2.0 | 22-26 | ≤0.50 | 11-14 | ≤0.04 | ≤0.04 | |
| 10 | ZG40Cr26Ni20 | 0.35-0.45 | ≤2.0 | ≤2.0 | 23-27 | ≤0.50 | 19-22 | ≤0.04 | ≤0.04 | |
| 11 | KmTBCr15Mo2 | 2-2.8 | ≤1.0 | 0.5-1.0 | 12-18 | 0.5-2.5 | 0-1.0 | 0-1.2 | ≤0.06 | ≤0.10 |
| 12 | KmTBCr20Mo2 | 2-3.0 | ≤1.0 | 0.5-1.0 | 18-22 | 1.5-2.5 | 0-1.5 | 0.8-1.2 | ≤0.06 | ≤0.10 |
| 13 | KmTBCr26 | 2-3.0 | ≤1.0 | 0.5-1.0 | 22-28 | 0-1.0 | 0-1.5 | 0-2.0 | ≤0.06 | ≤0.10 |
| 序號 |
牌號 Designation |
機械性能 | 金相組織 | ||
| Ak/cm2 | HRC/HB | abMpa | |||
| 1 | NM360 | ≥25 | HB≥360 | M+B+C | |
| 2 | NM400 | ≥20 | HB≥400 | M+B+C | |
| 3 | NM500 | ≥20 | HB≥500 | M+B+C | |
| 4 | 耐磨復合鋼板 | ≥100 | HRC≥60 | M+A+B+C | |
| 5 | ZGMn13 | ≥147 | HB≤229 | 637 | A+C |
| 6 | ZGMn13Cr2 | ≥80 | A+C | ||
| 7 | ZGMn17Cr2 | ≥50 | A+C | ||
| 8 | ZG20Cr26Ni5 | 590 | A+F | ||
| 9 | ZG35Cr26Ni12 | 490 | A+F | ||
| 10 | ZG40Cr26Ni20 | 440 | A+F | ||
| 11 | KmTBCr15Mo2 | ≥53 | M+A+C | ||
| 12 | KmTBCr20Mo2 | ≥3 | ≥58 | M+A+C | |
| 13 | KmTBCr26 | ≥52 | M+A+C | ||
